Product Name

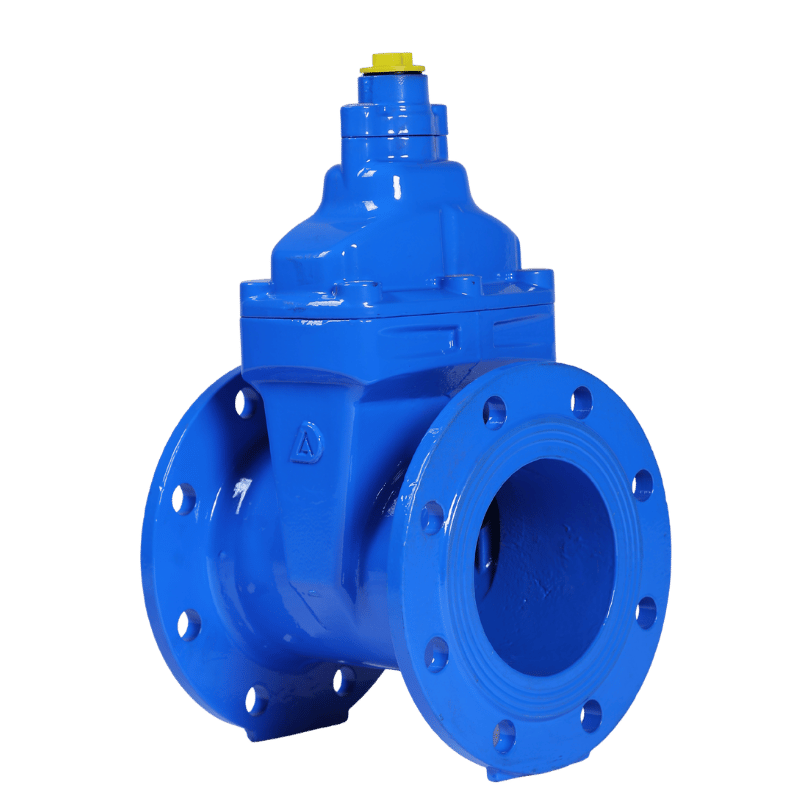

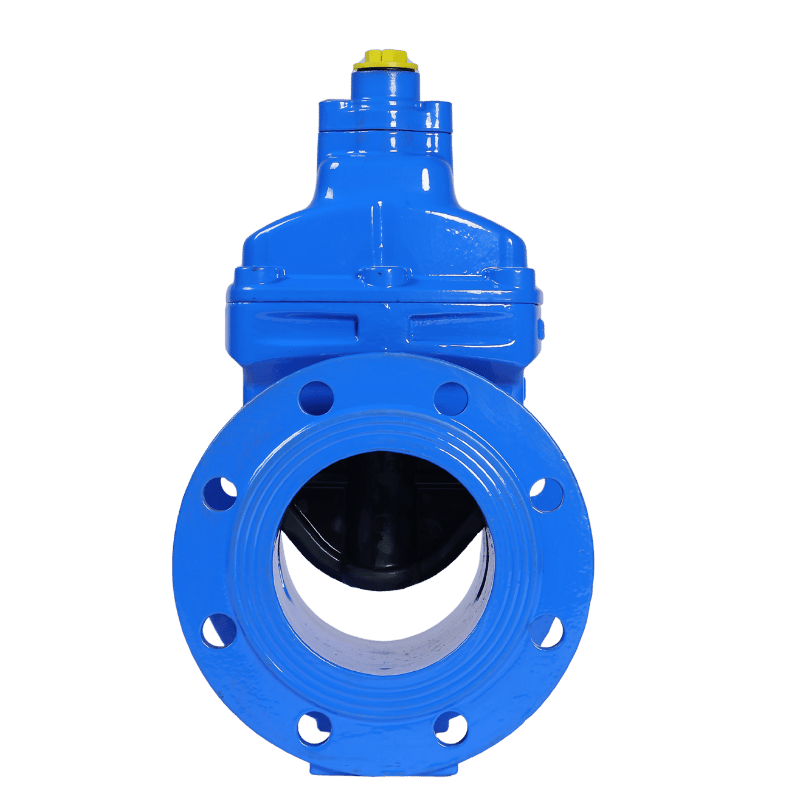

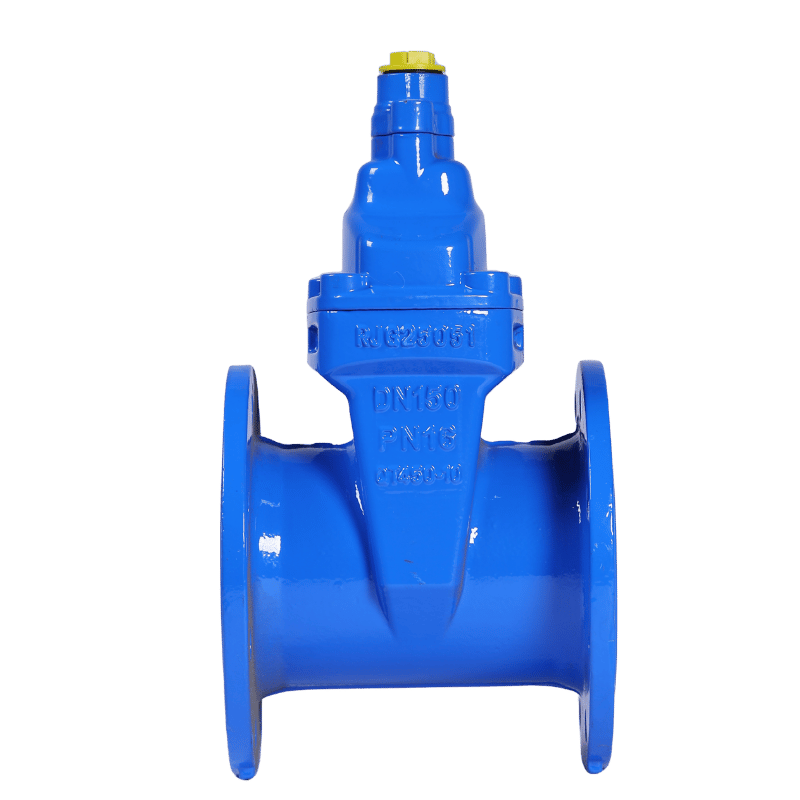

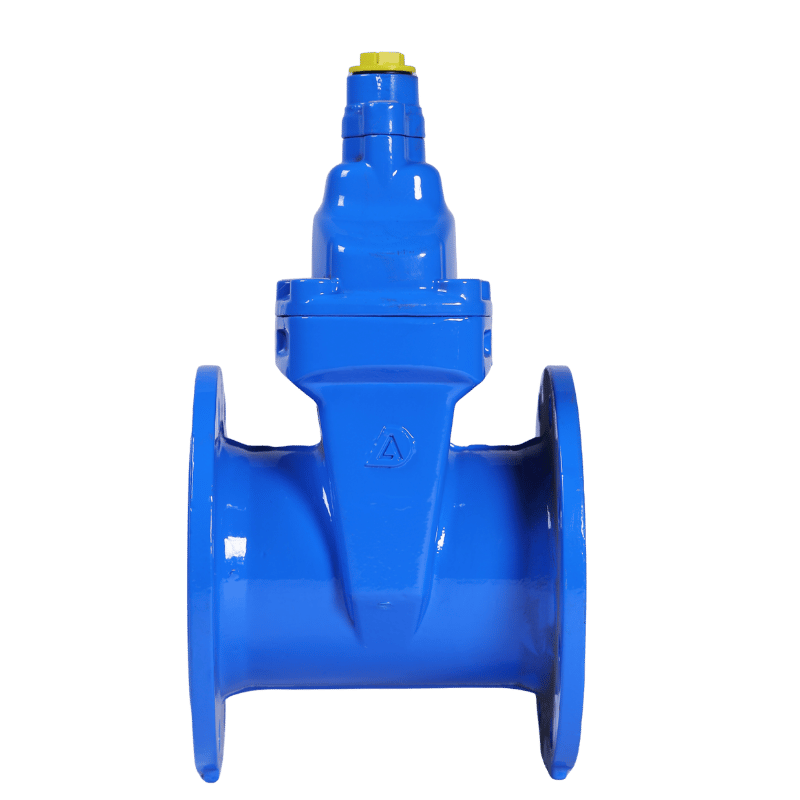

FZ45X Anti-Theft Resilient Seated Gate Valve

Product Information

The FZ45X Anti-Theft Resilient Seated Gate Valve can only be opened and closed using the proprietary specialized key provided exclusively by our company, making it exceptionally difficult to operate with duplicated or generic tools. The valve features a fully rubber-encapsulated wedge that ensures highly reliable sealing performance. Designed with a flat-bottom, pocketless flow path, it offers ultra-low fluid resistance and effectively prevents the accumulation of debris. Utilizing a specialized top-sealing structure equipped with three O-rings, the valve completely eliminates external leakage risks. Furthermore, both the internal and external surfaces of the valve body are electrostatically coated with non-toxic epoxy resin. Combined with the fully rubber-clad wedge, this design thoroughly prevents secondary water pollution.

產品圖

產品(pǐn)圖(tú)

產品圖

產品圖

Dimensions

Standards

Specifications

Materials
